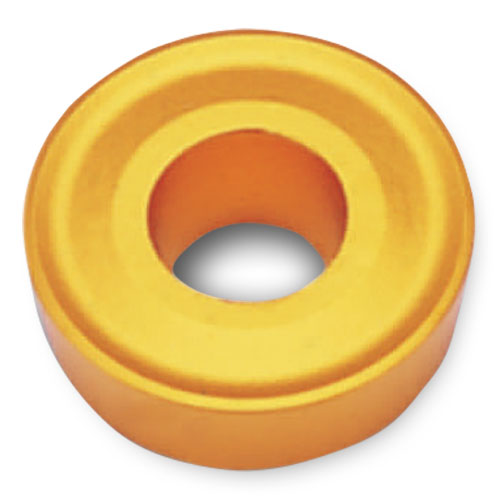

RCMX160600 TT7005
Item #: IC065523812
Brand: Ingersoll
Model #: 5523812
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Min D.O.C. | 0.118″ |
| Insert Size | 160600 |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Insert Thickness (S) | 1/4″ |
| Min. Turning Feed (ft(min)) | 0.016″ |
| Inscribed Circle Diameter (IC) | 0.63″ |
| Max. Turning Feed (ft(max)) | 0.03″ |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | TT7005 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.205″ |
