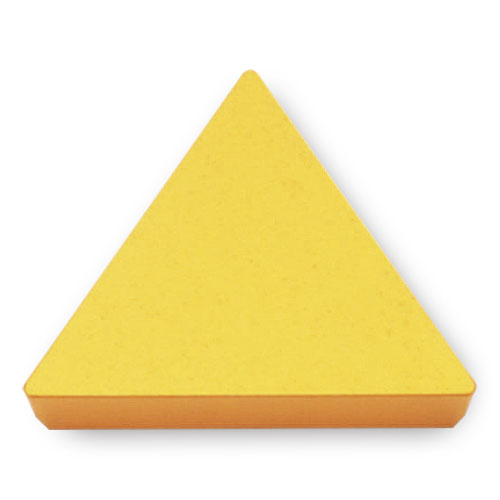

TPG436 K10
Item #: IC065580208
Brand: Ingersoll
Model #: 5580208
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.098″ |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Insert Size | 436 |
| Min. Turning Feed (ft(min)) | 0.01″ |
| Cutting Edge Length (L) | 0.622″ |
| Max. Turning Feed (ft(max)) | 0.016″ |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Body Material | Carbide |
| Grade | K10 |
