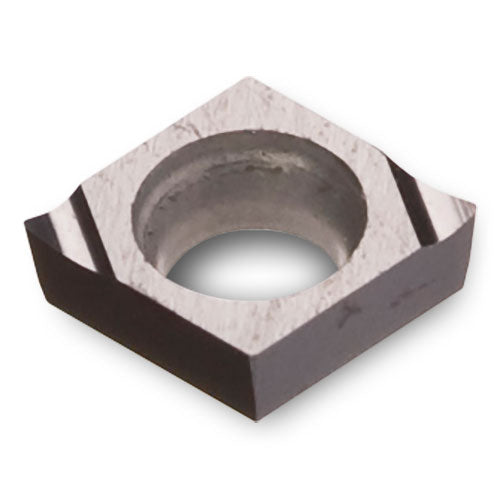

CCGT1.10.91R-FF CT3000
Item #: IC065750152
Brand: Ingersoll
Model #: 5750152
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.016″ |
| Insert Size | 1.10.91 |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Cutting Edge Length (L) | 0.142″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Thickness (S) | 0.055″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.138″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Grade | CT3000 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.079″ |
