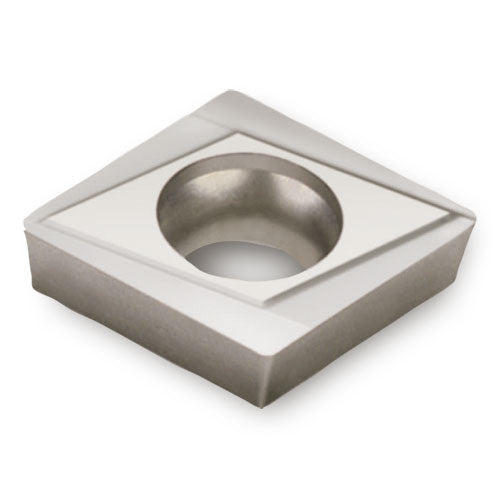

CPGT2.51.51C CT3000
Item #: IC065780214
Brand: Ingersoll
Model #: 5780214
| Product Specifications | |
|---|---|
| Insert Style | CPGT |
| Fixing Hole Diameter (D1) | 0.134″ |
| Corner Radius (RE) | 0.016″ |
| Min D.O.C. | 0.016″ |
| Insert Size | 2.51.51 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.299″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Thickness (S) | 0.094″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Inscribed Circle Diameter (IC) | 0.313″ |
| Measurement Type | Inch |
| Grade | CT3000 |
| Body Material | Carbide |
