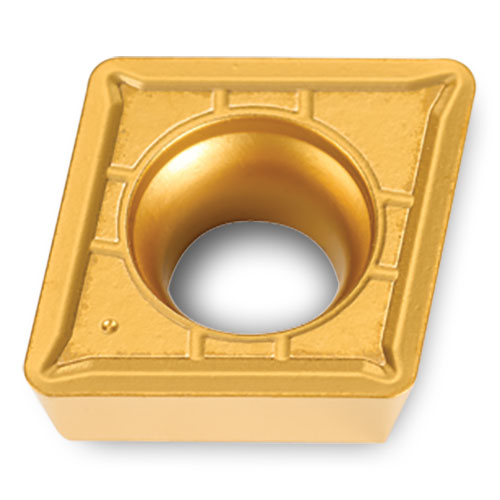

CPMT21.51PC TT7015
Item #: IC066116278
Brand: Ingersoll
Model #: 6116278
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Fixing Hole Diameter (D1) | 0.11″ |
| Corner Radius (RE) | 0.016″ |
| Min D.O.C. | 0.012″ |
| Insert Size | 21.51 |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.236″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Thickness (S) | 0.094″ |
| Max. Turning Feed (ft(max)) | 0.007″ |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | TT7015 |
