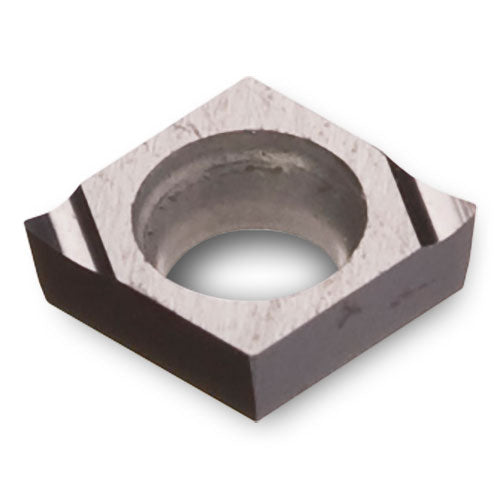

CCGT1.10.90L-FF TT9020
Item #: IC066136310
Brand: Ingersoll
Model #: 6136310
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Fixing Hole Diameter (D1) | 0.079″ |
| Corner Radius (RE) | 0.004″ |
| Min D.O.C. | 0.003″ |
| Insert Size | 1.10.90 |
| Depth of Cut Maximum (APMX) | 0.016″ |
| Cutting Edge Length (L) | 0.142″ |
| Min. Turning Feed (ft(min)) | 0.001″ |
| Insert Thickness (S) | 0.055″ |
| Max. Turning Feed (ft(max)) | 0.005″ |
| Inscribed Circle Diameter (IC) | 0.138″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Included Angle (EPSR) | 80 Degrees |
| Cutting Direction (HAND) | Neutral |
| Coating | TiCN |
| Measurement Type | Inch |
| Grade | TT9020 |
| Body Material | Carbide |
