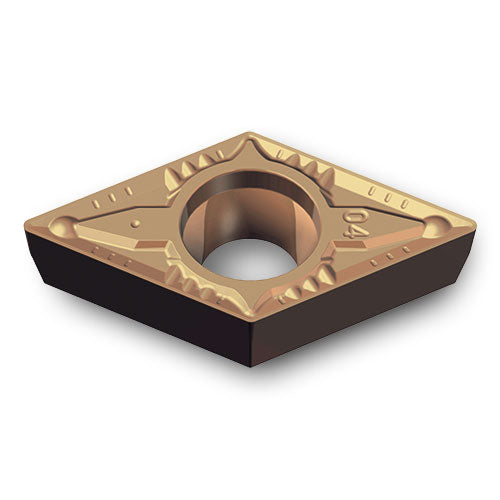

DCMT21.51FM TT5100
Item #: IC066155484
Brand: Ingersoll
Model #: 6155484
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Insert Size | 21.51 |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Thickness (S) | 0.094″ |
| Cutting Direction (HAND) | Neutral |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | TT5100 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ |
| Cutting Edge Effective Length (LE) | 0.291″ |
| Min D.O.C. | 0.02″ |
