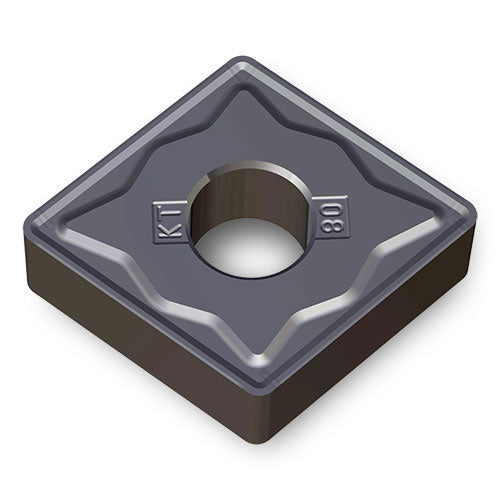

CNMG544KT TT7025
Item #: IC066322900
Brand: Ingersoll
Model #: 6322900
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Min D.O.C. | 0.04″ |
| Corner Radius (RE) | 0.063″ |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Insert Size | 544 |
| Min. Turning Feed (ft(min)) | 0.012″ |
| Cutting Edge Length (L) | 0.567″ |
| Max. Turning Feed (ft(max)) | 0.033″ |
| Insert Thickness (S) | 1/4″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Body Material | Carbide |
| Grade | TT7025 |
