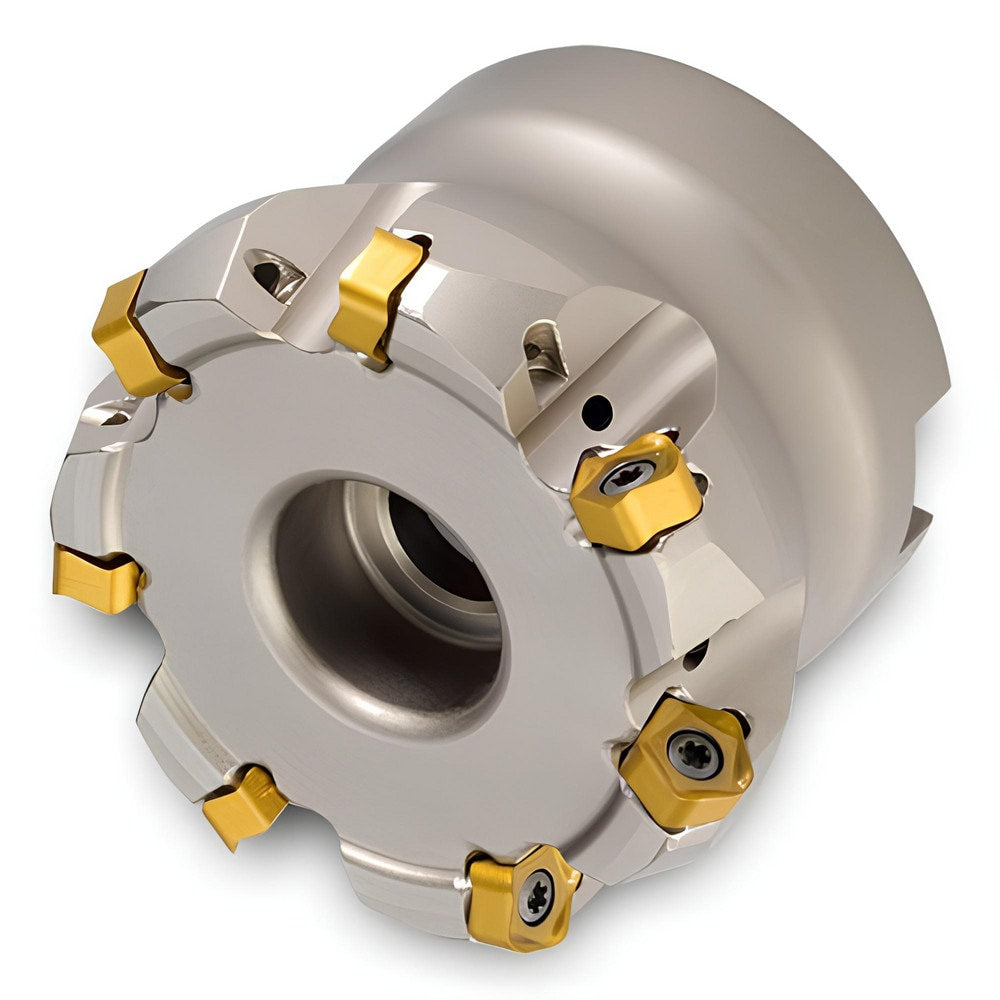

Brand: Ingersoll Cutting Tools / Part #: 2925882
Item #: 96721840
Brand: Ingersoll Cutting Tools
Model #: 2925882
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (mm) | 67.31 |
| Maximum Cutting Diameter (Decimal Inch) | 2.6500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 65.000 |
| Compatible Insert Size Code | 0503 |
| Cutter Style | DM6C |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | DM6C |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (Inch) | 5/16 |
| Overall Height (Mm - 5 Decimals) | 39.88000 |
| Overall Height (Decimal Inch) | 1.5700 |
| Pitch Type | Close |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | PNCU0503 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DM6C-25R01 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
| Number Of Flutes | 8 |
