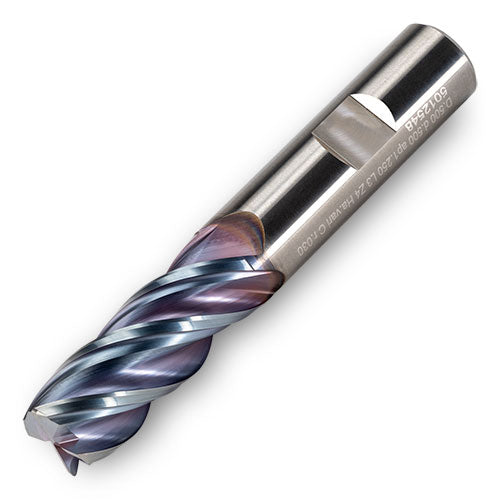

RH1-.375.500.500Z4030W2
Item #: IC079590841
Brand: Ingersoll
Model #: 9590841
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Body Material | Steel |
| Overall Length (OAL) | 2″ |
| Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Measurement Type | Inch |
| End Shape | Square |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 1/2″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
