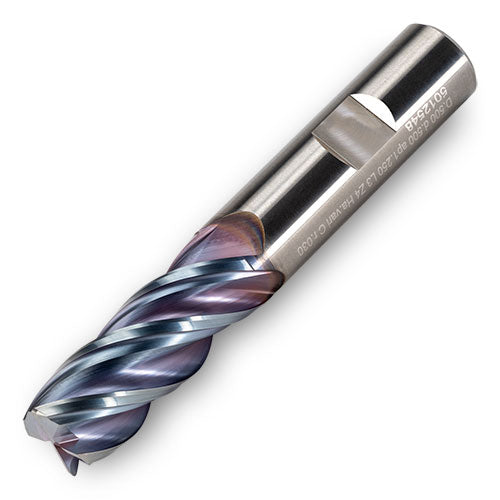

RH1-.3751.001.00Z4000W25
Item #: IC079591050
Brand: Ingersoll
Model #: 9591050
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 1″ |
| Body Material | Steel |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Measurement Type | Inch |
| End Shape | Square |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 1″ |
