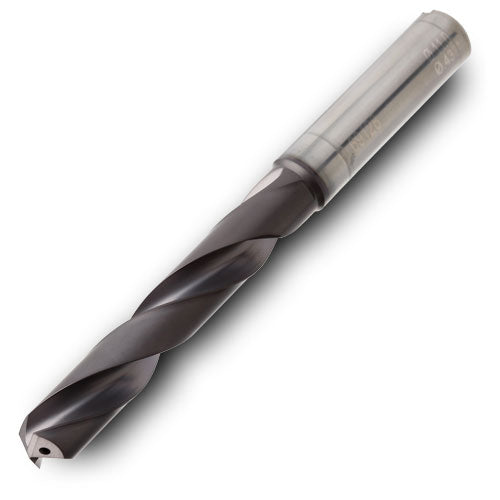

DH0970049T1R01 IN2005
Item #: IC086154667
Brand: Ingersoll
Model #: 6154667
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.7003 mm |
| Point Length (PL) | 1.5 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.7003 mm |
| Grade | IN2005 |
| Length Group | 5D |
| Measurement Type | Metric |
| Coating | TiAlN |
| Usable Length (LU) | 49 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Length Chip Flute (LCF) | 61 mm |
| Application | | Drill Mill | Drilling | |
| Overall Length (OAL) | 103 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Body Material | Steel |
| Point Angle (SIG) | 140 Degrees |
