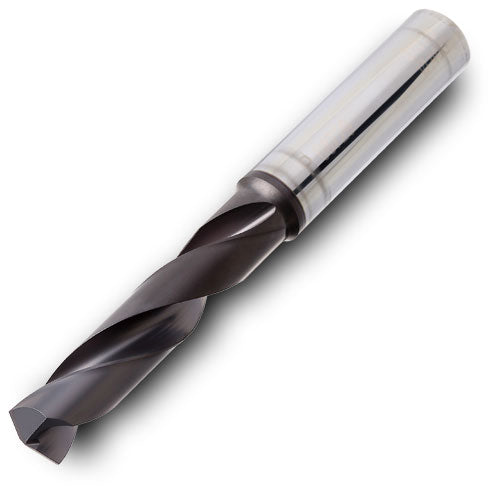

DJ0810049T1R01 IN2005
Item #: IC086154866
Brand: Ingersoll
Model #: 6154866
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.3189″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3189″ |
| Tool Type | Solid Carbide |
| Length Group | 6xD |
| Grade | IN2005 |
| Coating | TiAlN |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 1.929″ |
| Application | External Thread Milling | Internal Thread Milling |
| Length Chip Flute (LCF) | 2.4016″ |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Overall Length (OAL) | 4.0551″ |
| Shank Type | Cylindrical |
| Body Material | Steel |
| Shape | Solid Carbide |
