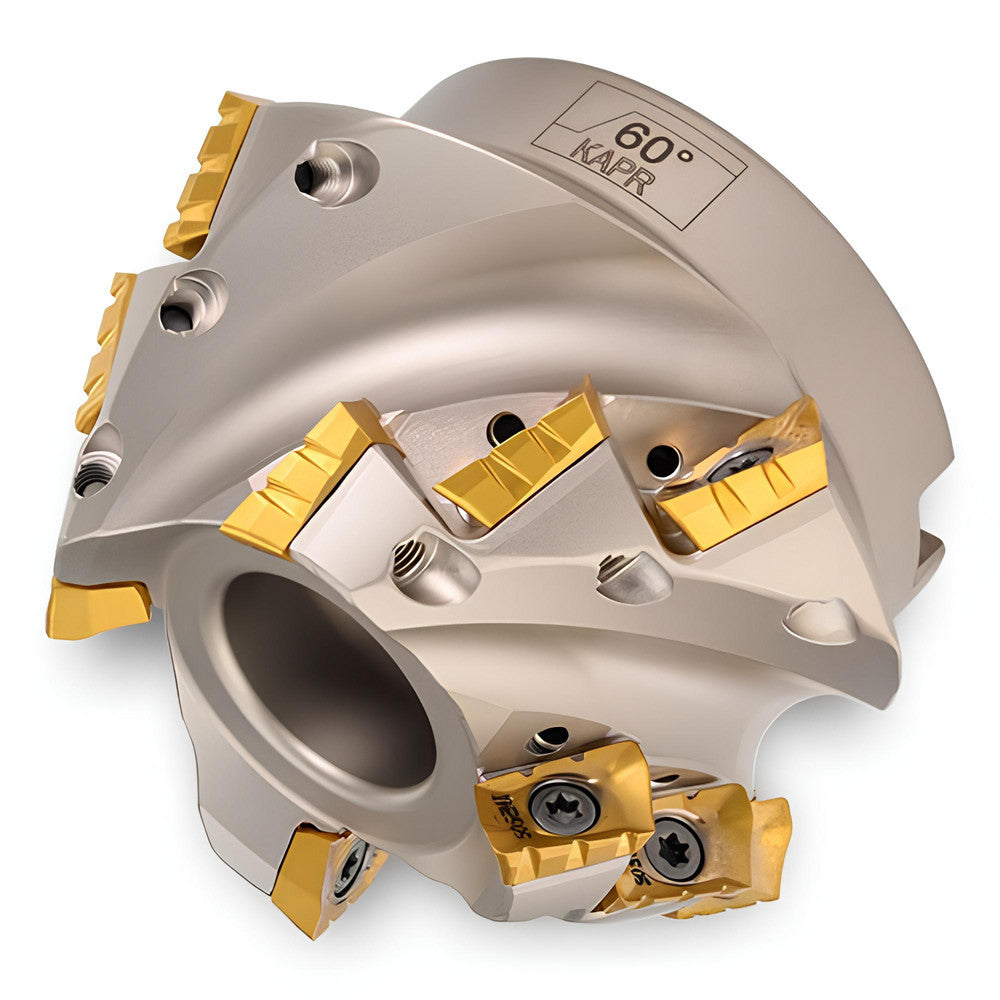

Brand: Ingersoll Cutting Tools / Part #: 2924348
Item #: 16015661
Brand: Ingersoll Cutting Tools
Model #: 2924348
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.7500 |
| Minimum Cutting Diameter (Inch) | 1-3/4 |
| Maximum Cutting Diameter (mm) | 78.28 |
| Maximum Cutting Diameter (Decimal Inch) | 6.3000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 60.000 |
| Compatible Insert Size Code | 1304 |
| Cutter Style | 22M3R |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | 22M3R |
| Keyway Width (Decimal Inch) | 0.3800 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Pitch Type | Close |
| Tool Application | Chamfering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | ZOMT1304; BOxT1304 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 22M3R-17020D3R01 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| Number Of Flutes | 4 |
