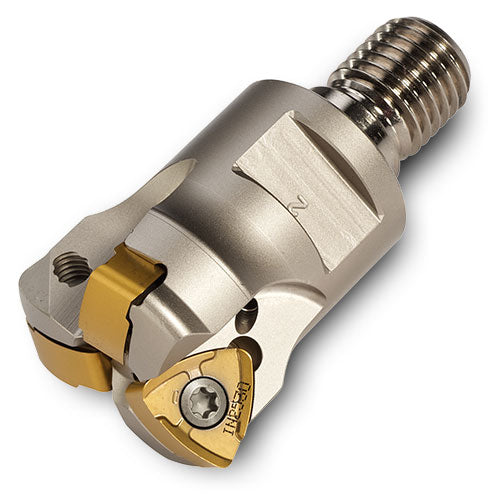

1DG1P-15017X9R01
Item #: IC522922121
Brand: Ingersoll
Model #: 2922121
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Functional Length (LF) | 1-3/4″ |
| Cutting Diameter (DC) | 0.755″ |
| Corner Radius (RE) | 0.139″ |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 3 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Hub Diameter (DHUB) | 1.42″ |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | |
