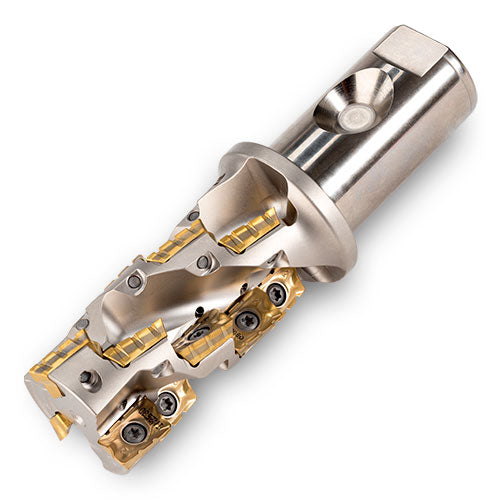

22J3G-2002782R01
Item #: IC522922446
Brand: Ingersoll
Model #: 2922446
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 2″ |
| Cutting Diameter (DC) | 2″ |
| Usable Length (LU) | 2.7″ |
| Cutting Item Count (CICT) | 4 |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 6″ |
| Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 4 Degrees |
| Body Material | Steel |
| Application | | Facing | Shouldering | Slotting | |
| Protruding Length (LPR) | 2-3/4″ |
