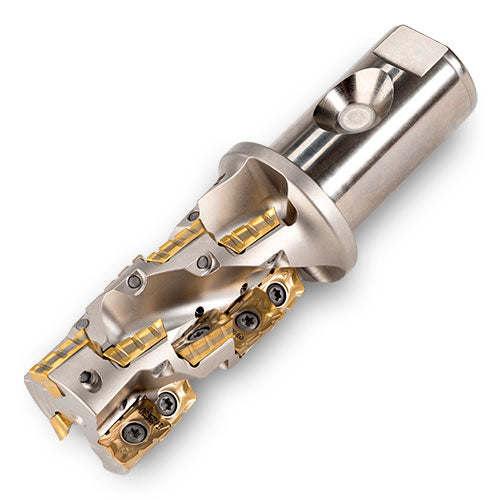

22J3G-1503381R01
Item #: IC522922567
Brand: Ingersoll
Model #: 2922567
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Diameter (DC) | 1-1/2″ |
| Usable Length (LU) | 3″ |
| Cutting Item Count (CICT) | 3 |
| Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 2.82″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5-1/2″ |
| Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Body Material | Steel |
| Application | | Facing | Shouldering | Slotting | |
| Protruding Length (LPR) | 3.3″ |
