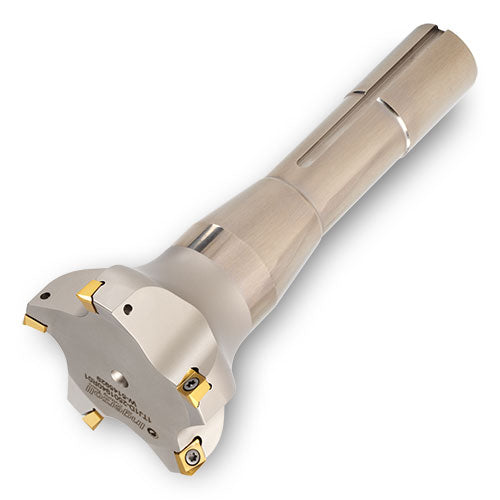

1TJ1D-2501940R01
Item #: IC522923608
Brand: Ingersoll
Model #: 2923608
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2-1/2″ |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Cutting Diameter (DC) | 2-1/2″ |
| Functional Length (LF) | 1.9″ |
| Cutting Item Count (CICT) | 5 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.24″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 5.9″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees |
