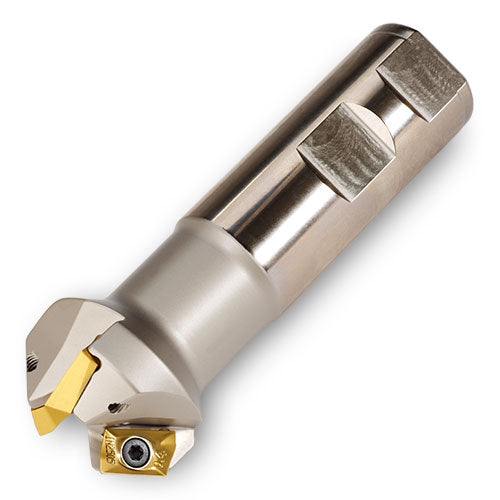

12N1R-0701780R01
Item #: IC522923912
Brand: Ingersoll
Model #: 2923912
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.408″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Diameter (DC) | 3/4″ |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Diameter Maximum (DCX) | 1.408″ |
| Angle | 90 Degrees |
| Cutting Item Count (CICT) | 3 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.32″ |
| Body Material | Steel |
| Overall Length (OAL) | 4″ |
| Protruding Length (LPR) | 1-3/4″ |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
