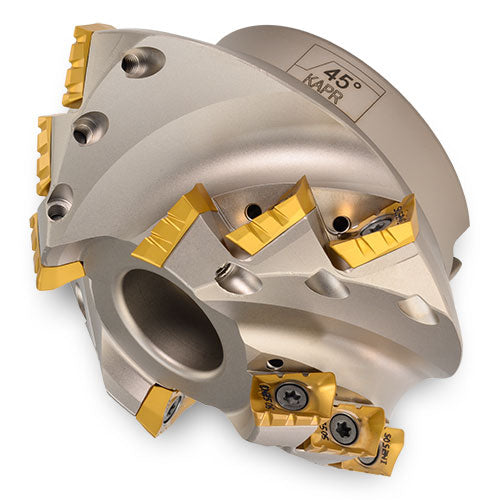

22P3R-17020D4R01
Item #: IC522924409
Brand: Ingersoll
Model #: 2924409
| Product Specifications | |
|---|---|
| Application | | Chamfering | Slanted Shoulder & Chamfer | |
| Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 1-3/4″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.656″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Overall Length (OAL) | 2″ |
