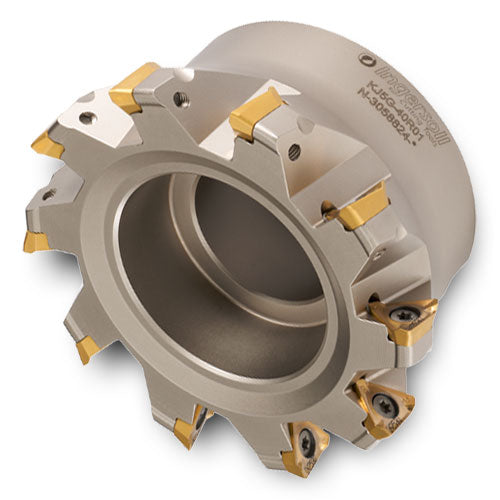

KJ6G-50R02
Item #: IC522927259
Brand: Ingersoll
Model #: 2927259
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5″ |
| Ramping Angle Maximum (RMPX) | 0.4 Degrees |
| Cutting Diameter (DC) | 5″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 11 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.41″ |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ |
