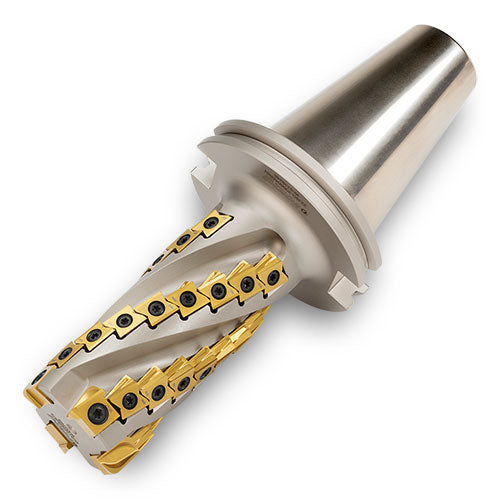

2XJ3J-2006048R02
Item #: IC522927399
Brand: Ingersoll
Model #: 2927399
| Product Specifications | |
|---|---|
| Application | | Facing | Shouldering | Slotting | |
| Flute Count (NOF) | 3 |
| Cutting Diameter (DC) | 2″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 4.262″ |
| Functional Length (LF) | 6″ |
| Face Effective Cutting Edge Count (ZEFF) | 3 Teeth |
| Body Material | Steel |
| Usable Length (LU) | 4-5/8″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 10″ |
