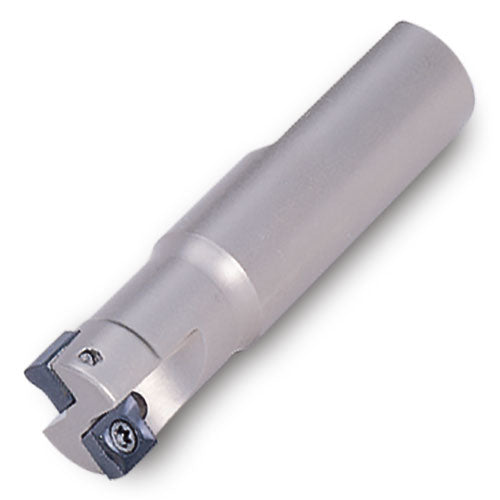

12J1M-0300778R01
Item #: IC523003946
Brand: Ingersoll
Model #: 3003946
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Diameter (DC) | 3/8″ |
| Usable Length (LU) | 0.1″ |
| Cutting Item Count (CICT) | 1 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.3″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ |
| Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Protruding Length (LPR) | 0.72″ |
