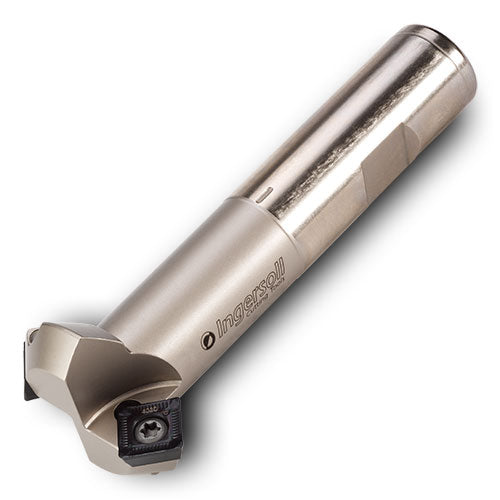

15M1G-1502084R01
Item #: IC523009634
Brand: Ingersoll
Model #: 3009634
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Application | | Chamfering | Slanted Shoulder & Chamfer | |
| Cutting Diameter (DC) | 1.07″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Cutting Item Count (CICT) | 2 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.21″ |
| Body Material | Steel |
| Overall Length (OAL) | 4″ |
