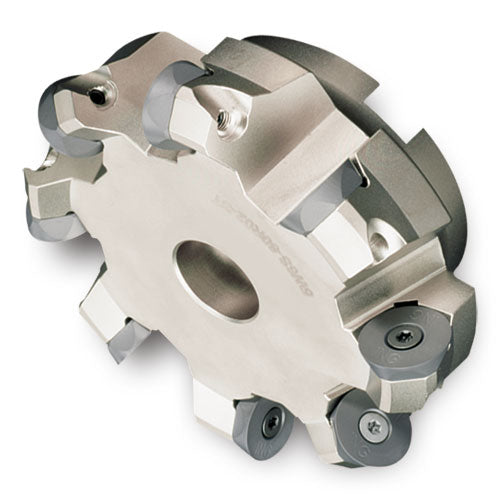

5W6S-60R20
Item #: IC523017081
Brand: Ingersoll
Model #: 3017081
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 6″ |
| Overall Length (OAL) | 2-1/2″ |
| Cutting Diameter (DC) | 5″ |
| Ramping Angle Maximum (RMPX) | 3.5 Degrees |
| Cutting Diameter Maximum (DCX) | 6″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 8 |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
