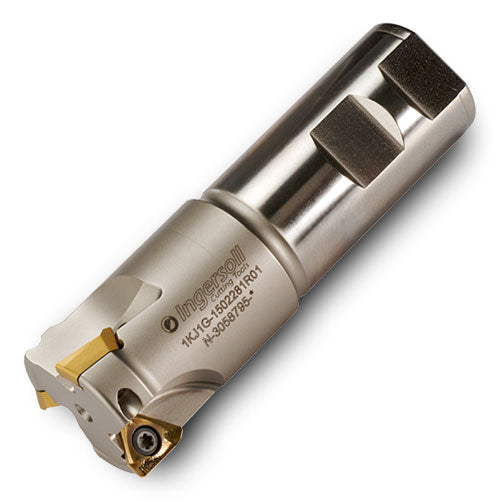

1KJ1G032040W6R00
Item #: IC523031303
Brand: Ingersoll
Model #: 3031303
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 32 mm |
| Usable Length (LU) | 40 mm |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 11 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 110 mm |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Protruding Length (LPR) | 50 mm |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
