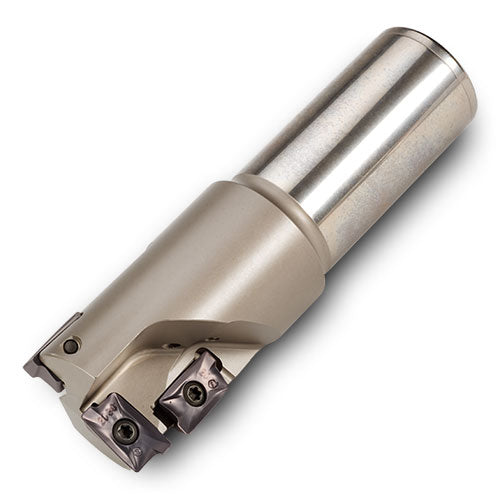

12S1E-1502781R01
Item #: IC523031570
Brand: Ingersoll
Model #: 3031570
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Usable Length (LU) | 2-1/2″ |
| Cutting Diameter (DC) | 1-1/2″ |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 1 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1.26″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 5″ |
| Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Protruding Length (LPR) | 2-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
