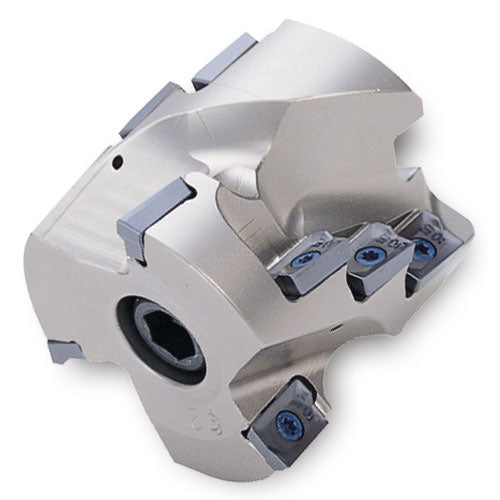

22J3R050046F1R00
Item #: IC523060288
Brand: Ingersoll
Model #: 3060288
| Product Specifications | |
|---|---|
| Application | | Facing | Shouldering | Slotting | |
| Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 1.968″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 1.811″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.866″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 2.756″ |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees |
