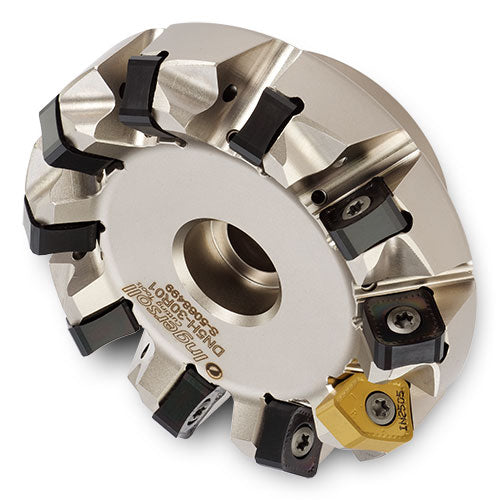

DN5H125R00
Item #: IC523074983
Brand: Ingersoll
Model #: 3074983
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5.492″ |
| Overall Length (OAL) | 2.48″ |
| Cutting Diameter (DC) | 4.921″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 5.492″ |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Cutting Item Count (CICT) | 16 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.575″ |
