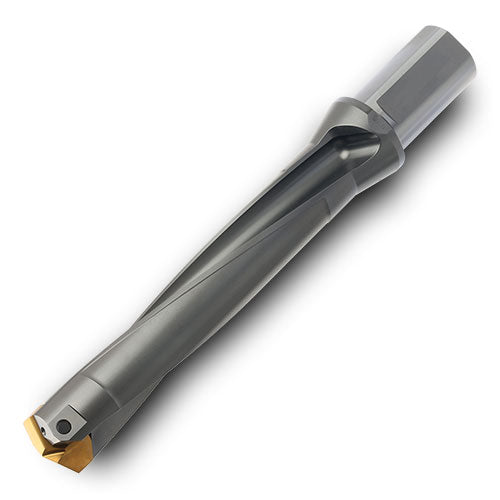

LD2500075JGR00
Item #: IC526133605
Brand: Ingersoll
Model #: 6133605
| Product Specifications | |
|---|---|
| Usable Length (LU) | 78.91 mm |
| Cutting Diameter Maximum (DCX) | 25.9 mm |
| Length Group | 3D |
| Functional Length (LF) | 110 mm |
| Application | | Drill Mill | Drilling | |
| Shank Length (LS) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 25 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 25 mm |
| Flange Diameter (DF) | 40 mm |
