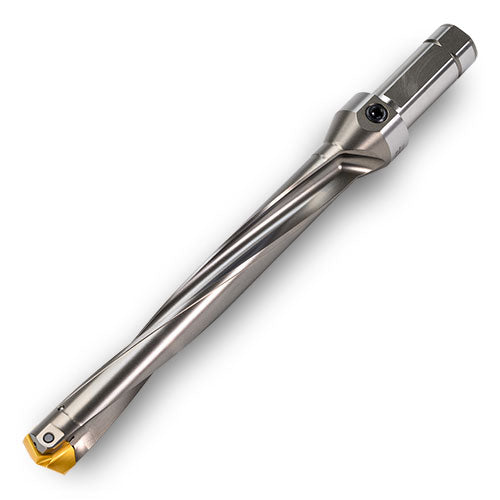

LD3200256N6R01
Item #: IC526185626
Brand: Ingersoll
Model #: 6185626
| Product Specifications | |
|---|---|
| Usable Length (LU) | 10.275″ |
| Cutting Diameter Maximum (DCX) | 1.295″ |
| Length Group | 8D |
| Functional Length (LF) | 12.283″ |
| Application | | Drill Mill | Drilling | |
| Shank Length (LS) | 3.16″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 32 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 1″ |
| Flange Diameter (DF) | 1.772″ |
