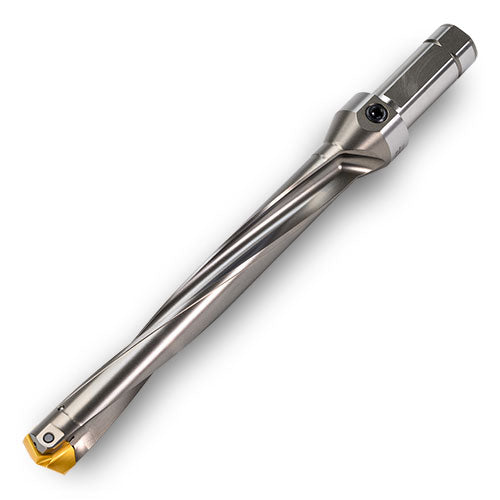

LD3700296N6R01
Item #: IC526185631
Brand: Ingersoll
Model #: 6185631
| Product Specifications | |
|---|---|
| Usable Length (LU) | 11.882″ |
| Cutting Diameter Maximum (DCX) | 1.492″ |
| Length Group | 8D |
| Functional Length (LF) | 14.154″ |
| Application | | Drill Mill | Drilling | |
| Shank Length (LS) | 3.16″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 37 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 1″ |
| Flange Diameter (DF) | 2.165″ |
