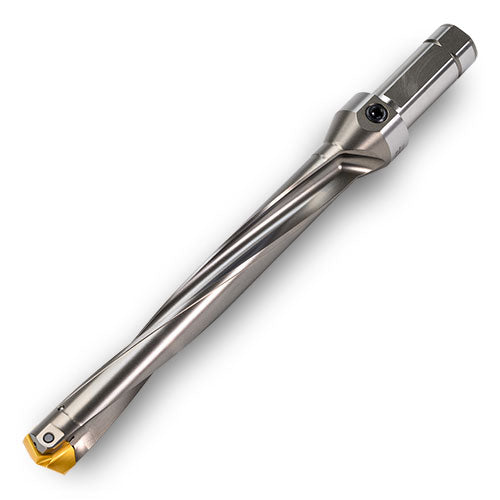

LD3900312N6R01
Item #: IC526185633
Brand: Ingersoll
Model #: 6185633
| Product Specifications | |
|---|---|
| Usable Length (LU) | 12.523″ |
| Cutting Diameter Maximum (DCX) | 1.571″ |
| Length Group | 8D |
| Functional Length (LF) | 14.823″ |
| Application | | Drill Mill | Drilling | |
| Shank Length (LS) | 3.16″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 39 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 2″ |
| Flange Diameter (DF) | 2.165″ |
