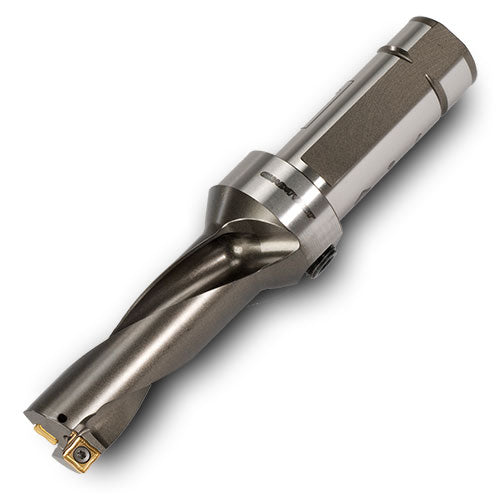

QR0135068N5R02
Item #: IC526318158
Brand: Ingersoll
Model #: 6318158
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.531″ |
| Cutting Diameter Maximum (DCX) | 0.547″ |
| Usable Length (LU) | 2.756″ |
| Flange Diameter (DF) | 1.26″ |
| Application | | Drill Mill | Drilling | |
| Point Length (PL) | 0.032″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Measurement Type | Inch |
| Shank Length (LS) | 3.16″ |
| Length Group | 5D |
| Functional Length (LF) | 3.78″ |
| Body Material | Steel |
| Overall Length (OAL) | 6.929″ |
| Decimal Equivalent | 0.531″ |
| Cutting Item Count (CICT) | 2 |
