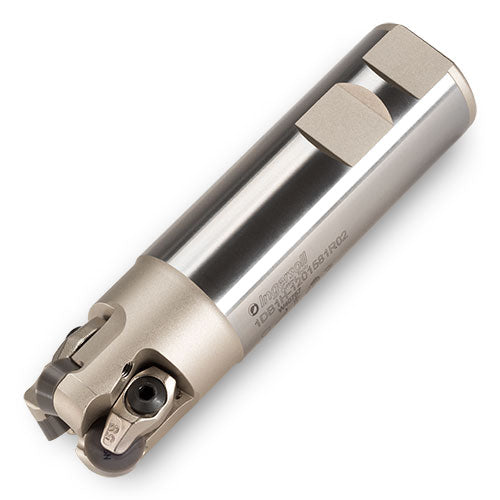

1DB1H-1203181R02
Item #: IC526322761
Brand: Ingersoll
Model #: 6322761
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/4″ |
| Application | | Facing | Helical Interpolation | Rampdown | |
| Cutting Diameter (DC) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Usable Length (LU) | 1.57″ |
| Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 5.512″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 0.2 Degrees |
| Protruding Length (LPR) | 3.26″ |
