Cleveland - Straight Flute Thread Mills Pitch (mm): 1.00 Thread Size (mm): M6 - Exact Tooling

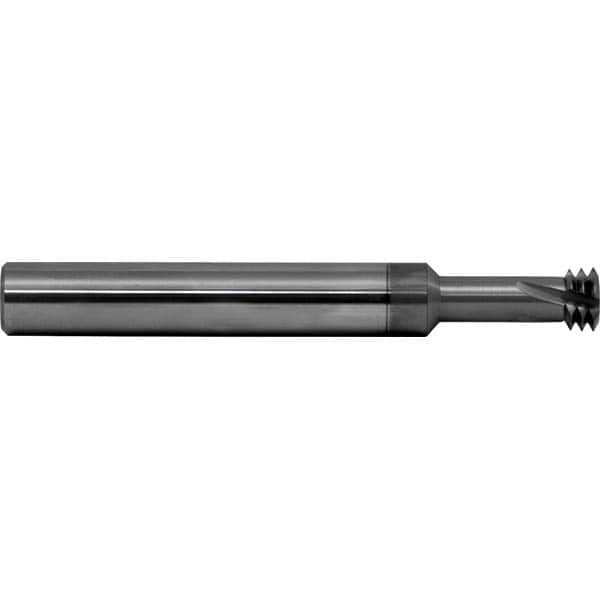

Cleveland - Straight Flute Thread Mills Pitch (mm): 1.00 Thread Size (mm): M6


Item #: 18112656
Brand: Cleveland
Model #: C95135

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.

Product Specifications

Straight Flute Thread Mills; Pitch (mm): 1.00 ; Thread Size (mm): M6 ; Minimum Nominal Diameter (mm): M6 ; Material: Solid Carbide ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.2500
Pitch (mm) 1.00
Thread Size (mm) M6
Minimum Nominal Diameter (mm) M6
Material Solid Carbide
Thread Type Internal/External
Shank Diameter (Decimal Inch) 0.2500
Shank Diameter (Inch) 0.25
Number of Flutes 3
Cutting Diameter (Inch) 0.185
Finish/Coating AlCrN
Length of Cut (Decimal Inch) 0.4991
Thread Standard ISO
Through Coolant NonThrough Coolant
Overall Length (Decimal Inch) 2.50000
Through Coolant NonThrough Coolant
Material Grade Submicron
Thread Mill Type Mini
PSC Code 5133
$ 404.97

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
