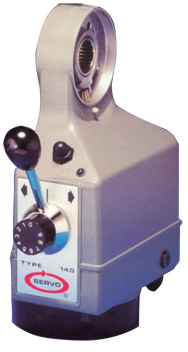

Table Power Feed - 140 inch/lbs; For Millport-Webb

Item #: JD80M2700140
Manufacturer: Servo
Mfg #: M-2700-140

Technical Specifications:
•Brand Name: Servo •Description: X-Axis Table Feed •For Use With: Brute 10 x 50, Comet, First Yamazen, Hartford, Marena 942, Millport, Newport, Select, Sharp VIA, South Bend Import, Webb •Model Number: M-2700-140 •Type: 140

Description:
•Semi-automated machining on Class 1 mills to 3 hp. •Peak Torque (half-wave series motor): to 140 in.- lb. / 15.8 NM torque •Intermittent Torque: 105 in.- lb. / 11.9 NM •Continuous Torque: 90 in.- lb. / 10.2 NM •Variable Feed Rate: .75-25 IPM / 19-635 mm/min (table & cross), .5-12 IPM / 13-305 mm/min (knee) •Gear Reduction Ratio (motor to screw shaft): 72:1. •Helical gearing and torque limiting friction safety clutch with new and improved gear •Electrical: 110V, 50/60 Hz, 2.5A. •Approximate weight: 15 lb. / 6.8 kg.

Shipping Info:
•Actual Weight - 21.0000
