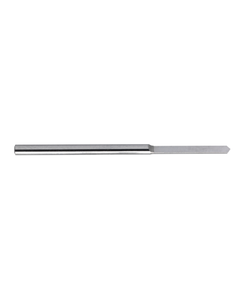

0.95 mm Dia. × 1.5 mm Shank Dia. × 30 mm OAL × 9.5 mm LCF, 120 Degrees, 10xD, Uncoated - Solid Carbide Drills
Item #: FB501100095R
Brand: GMauvias
Model #: 1100095R
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.95 mm |
| Tool Type | Micro Drills |
| Length Group | 10xD |
| Usable Length (LU) | 9.5 mm |
| Coating | Uncoated |
| Length Chip Flute (LCF) | 9.5 mm |
| Connection Diameter Machine Side (DCONMS) | 1.5 mm |
| Overall Length (OAL) | 30 mm |
| Point Angle (SIG) | 120 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 9.5 mm |
