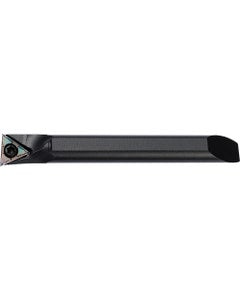

C080XSTLPR09100EZP Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC14617
Brand: Kyocera Precision Tools
Model #: THC14617
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 85.5 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 85.5 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 14 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 7.5 mm |
| Series/List # | EZB |
| Shank Length (LS) | 71.5 mm |
| Style | C...STLP-EZP |
| Functional Width (WF) | 5 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | TPGT1815 | TPMT1815 | TPMX1815 | TPEH1815 | TPGH1815 | TPGB1815 | TPMH1815 | |
| Weight of Item (WT) | 0.1874 |
| Minimum Bore Diameter (DMIN) | 10 mm |
