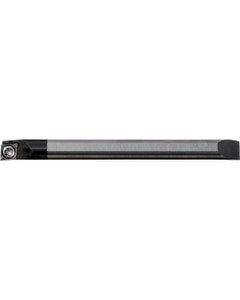

S070XSCLCR04080EZP Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC14604
Brand: Kyocera Precision Tools
Model #: THC14604
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 60.4 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 60.4 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 10.3 mm |
| Rake Angle Radial (GAMF) | -11 Degrees |
| Shank Height (H) | 6.7 mm |
| Series/List # | EZB |
| Shank Length (LS) | 50.1 mm |
| Body Material | Steel |
| Functional Width (WF) | 4 mm |
| Style | S...SCLC-EZP |
| Master Insert Identification (MIID) | | CCGT1411 | CCET1411 | CCGW1411 | CCMW1411 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 8 mm |
| Weight of Item (WT) | 0.1071 |
