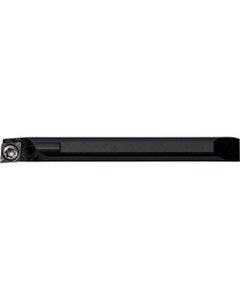

C045XSCLCR03050EZP Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC14611
Brand: Kyocera Precision Tools
Model #: THC14611
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 51.4 mm |
| Rake Angle Axial (GAMP) | 2 Degrees |
| Overall Length (OAL) | 51.4 mm |
| Rake Angle Radial (GAMF) | -15 Degrees |
| Shank Height (H) | 4.3 mm |
| Series/List # | EZB |
| Functional Width (WF) | 2.5 mm |
| Style | C...SCLC-EZP |
| Master Insert Identification (MIID) | | CCGT1109 | CCET1109 | CCMW1109 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 5 mm |
| Weight of Item (WT) | 0.1005 |
| Cutting Direction (HAND) | Right Hand |
