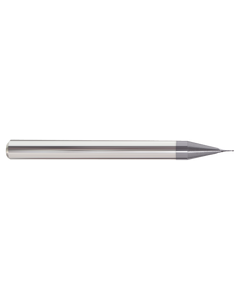

.021-2FL-SE-REG-BALL-AlTiN
Item #: MW21250320021B
Brand: Monster Tool Company
Model #: 250-320021B
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.021″ |
| Application | | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 0.063″ |
| Length Group | Regular |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.021″ |
| Coating | TiAlN |
| Series/List # | 250 |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Single / Double End | Single End |
