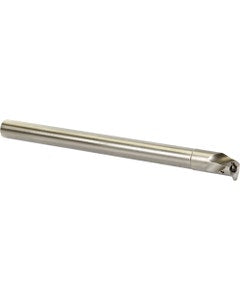

A08MSVUCL15AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC14091
Brand: Kyocera Precision Tools
Model #: THC14091
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 6″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 1.0039″ |
| Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 0.461″ |
| Series/List # | DYNB |
| Shank Length (LS) | 4.9961″ |
| Body Material | Steel |
| Functional Width (WF) | 0.4528″ |
| Style | A...SVUC-AE |
| Master Insert Identification (MIID) | | VCMT1515 | VCGW1515 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.6299″ |
| Weight of Item (WT) | 0.4 |
