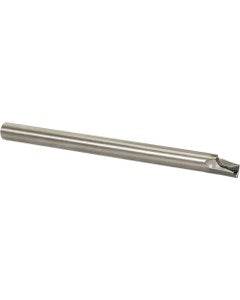

A08XSTLPL0810AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC11855
Brand: Kyocera Precision Tools
Model #: THC11855
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 120 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 120 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 16 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 7 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 104 mm |
| Body Material | Steel |
| Functional Width (WF) | 5 mm |
| Style | A...STLP-AE |
| Master Insert Identification (MIID) | | TPGT1515 | TPGH1515 | TPET1515 | TPGB1515 | TPMH1515 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 10 mm |
| Weight of Item (WT) | 0.1579 |
