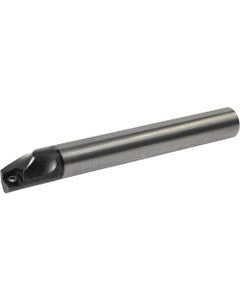

E10NSCLCR0612AN23 Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC14576
Brand: Kyocera Precision Tools
Model #: THC14576
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 105 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 105 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 18 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 9 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 87 mm |
| Style | E...SCLC-AN |
| Functional Width (WF) | 6 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | CCGT215 | CCMT215 | CCET215 | CCGW215 | CCMW215 | |
| Weight of Item (WT) | 0.1808 |
| Minimum Bore Diameter (DMIN) | 12 mm |
