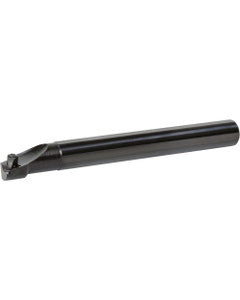

S12LCTUPR0916 Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC03670
Brand: Kyocera Precision Tools
Model #: THC03670
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 140 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 140 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 32 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 11 mm |
| Series/List # | GPBB |
| Shank Length (LS) | 108 mm |
| Body Material | Steel |
| Functional Width (WF) | 8 mm |
| Style | S...CTUP |
| Master Insert Identification (MIID) | | TPMR1815 | TPGR1815 | TPG1815 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 16 mm |
| Weight of Item (WT) | 0.3946 |
