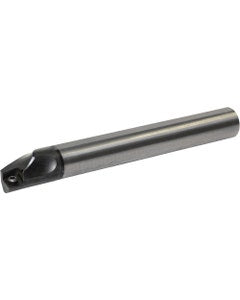

E08LSCLCR0610AN Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC14565
Brand: Kyocera Precision Tools
Model #: THC14565
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 140 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 140 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 14 mm |
| Rake Angle Radial (GAMF) | -14 Degrees |
| Shank Height (H) | 7 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 126 mm |
| Style | C...SCLC-AN |
| Functional Width (WF) | 5 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | CCGT215 | CCMT215 | CCET215 | CCGW215 | CCMW215 | |
| Weight of Item (WT) | 0.2421 |
| Minimum Bore Diameter (DMIN) | 10 mm |
