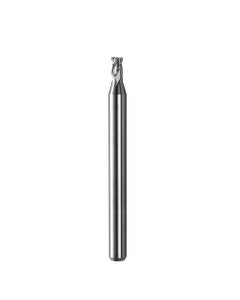

09276 2.30 4FL SQ ENDMILL
Item #: DD9009276
Brand: KYOCERA SGS Precision Tools
Model #: 09276
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2.3 mm |
| Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Group | 3D |
| Depth of Cut Maximum (APMX) | 6.9 mm |
| Flute Type | Spiral |
| Overall Length (OAL) | 38 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Series/List # | M4S |
| Flute Count (NOF) | 4 |
| Shank Size (SS) | 0.1181″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Shank Length (LS) | 1.2243″ |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Square |
| Single / Double End | Single End |
| Usable Length (LU) | 0.2718″ |
| Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
