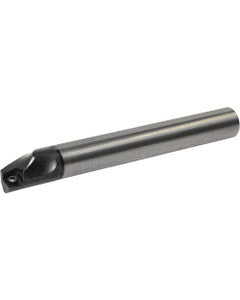

E10NSCLPR0812AN12 Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC14579
Brand: Kyocera Precision Tools
Model #: THC14579
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 80 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 80 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 18 mm |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 9 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 62 mm |
| Style | E...SCLP-AN |
| Functional Width (WF) | 6 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | CPMT2515 | CPMH2515 | CPMB2515 | CPGB2515 | |
| Weight of Item (WT) | 0.1596 |
| Minimum Bore Diameter (DMIN) | 12 mm |
