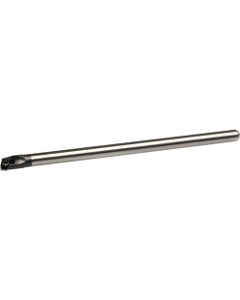

C05HSWUBR0606AN Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC14559
Brand: Kyocera Precision Tools
Model #: THC14559
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 100 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 100 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 9 mm |
| Rake Angle Radial (GAMF) | -15 Degrees |
| Shank Height (H) | 4.4 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 91 mm |
| Style | C...SWUB-AN |
| Functional Width (WF) | 3 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | WBMT121 | WBGT121 | WBGW121 | |
| Weight of Item (WT) | 0.1276 |
| Minimum Bore Diameter (DMIN) | 6 mm |
